Avizo 9.3 XLab Electro, XLab Diffusion, XLab Thermo, and XLab Hydro extensions now included in Avizo XLab Suite extension

This text applies to Avizo and Avizo Inspect.

Starting with Avizo 9.3, the XLab Electro, XLab Diffusion, XLab Thermo, and XLab Hydro extensions will be included in Avizo XLab Suite extension.
Thus, there is no upgrade to version 9.3 for XLab Electro, XLab Diffusion, and XLab Thermo licenses. Only XLab Hydro license will be upgraded to Avizo XLabSuite, and this license will allow you to use all XLab extensions.

If you try to upgrade an XLab Electro, XLab Diffusion, or XLab Thermo license to 9.3, you will see some error messages. They are normal and can be ignored. They will vary depending on if you are using online activation, offline activation, or floating licenses.

If you are using floating licenses, there is a specific upgrade command to run, see details below.

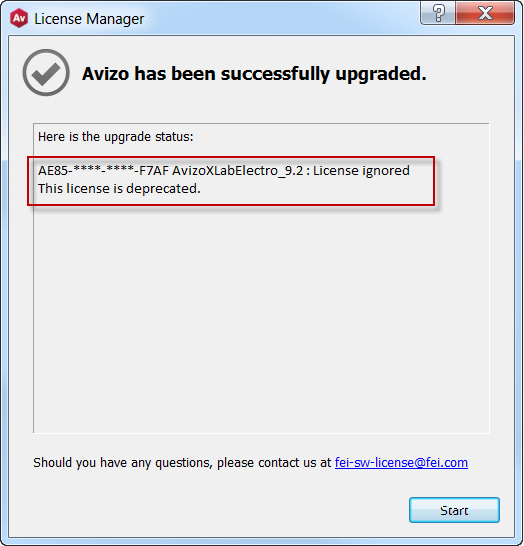

Online activation

Here is the kind of error message you can expect to see:

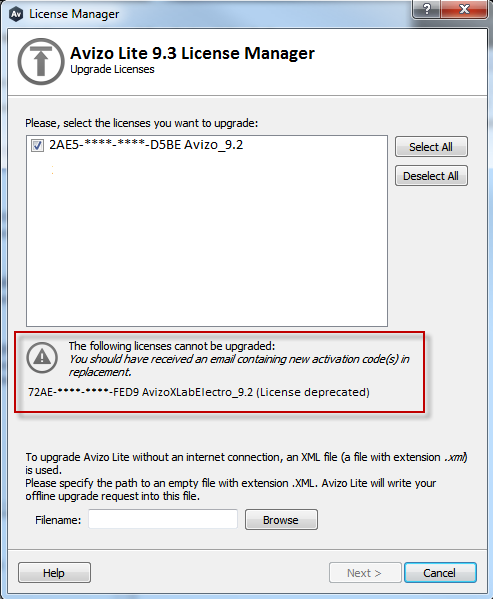

Offline activation

Here is the kind of error message you can expect to see:

You can ignore the statement “You should have received an email containing new activation code(s) in replacement.”

Floating licenses

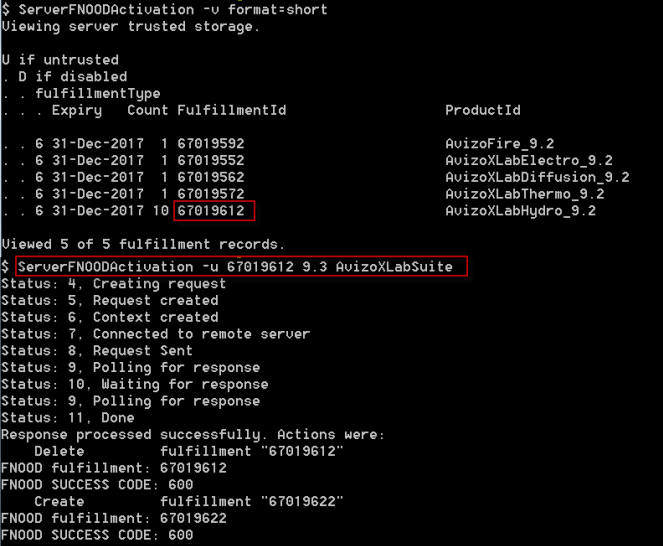

In order to upgrade to XLabSuite extension you will need to upgrade only AvizoXLabHydro extension, running the following command :

ServerFNOODActivation -u <AvizoXLabHydro FulfilmentId> 9.3 AvizoXLabSuite

There is no need to upgrade  XLab Electro, XLab Diffusion nor XLab Thermo extensions.



If you need additional assistance upgrading to Avizo 9.3, please contact the technical support group: FEI customer support. Please provide your activation code(s) and a screenshot (or copy/paste from terminal window) showing what you have done, and the results, including any error messages.
